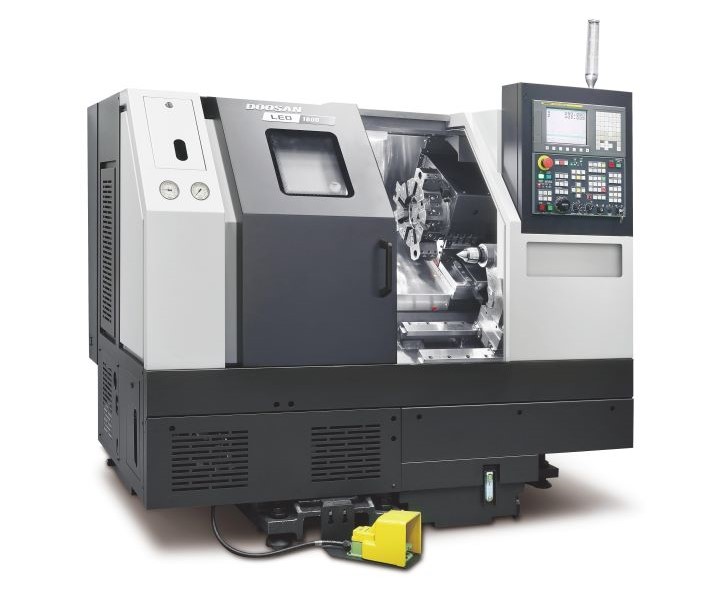

LEO 1600 includes a 30˚slanted stable bed structure with highly rigid roller type LM guideway for reliable machining.
A small footprint with big capabilities The machine is a compact design with 1850 mm width and comes with a 175 mm X-axis stroke and 330 mm Z-axis stroke.
LEO 1600 offers the largest machining area in its class.
Highly reliable spindle with high-rigidity spindle bearing design is available with chuck size 6 inch standard, 8 inch option.
The durable eight station turret ensures stable tool rotation and increase machine performance.
Rigid tailstock is available to provide stable support of long workpieces.
Various optional features are available for customer-specific work environments.
|
Item
|
Unit
|
LEO 1600
|
|
Capacity
|
Swing over bed
|
mm (inch)
|
470 (18.5)
|
|
Swing over saddle
|
mm (inch)
|
300 (11.8)
|
|
Recom. Turning diameter
|
mm (inch)
|
170 (6.7)
|
|
Max. Turning diameter
|
mm (inch)
|
320 (12.6)
|
|
Max. Turning length
|
mm (inch)
|
303 (11.9)
|
|
Chuck size
|
inch
|
6 {8}*
|
|
Bar working diameter
|
mm (inch)
|
45 (1.8)
|
|
Travel
|
Travel distance
|
X axis
|
mm (inch)
|
175 (6.9)
|
|
Z axis
|
mm (inch)
|
330 (13.0)
|
|
Rapid traverse rate
|
X axis
|
m/min (ipm)
|
30 (1181.1)
|
|
Z axis
|
m/min (ipm)
|
30 (1181.1)
|
|
Spindle
|
Max. Spindle speed
|
r/min
|
4000
|
|
Main spindle motor power (S3 25%/cont.)
|
kW (Hp)
|
7.5/5.5 (10.1/7.4)
|
|
Spindle nose
|
ASA
|
A2-5
|
|
Spindle bearing diameter (Front)
|
mm (inch)
|
90 (3.5)
|
|
Spindle through hole diameter
|
mm (inch)
|
61 (2.4)
|
|
Turret
|
No. of tool stations
|
ea
|
8 {12}*
|
|
OD tool size
|
mm (inch)
|
25 x 25 (1.0 x 1.0)
|
|
Max. boring bar size
|
mm (inch)
|
ø32 (ø1.3)
|
|
Turret Indexing time (1 station swivel)
|
sec
|
0.15
|
|
Tail Stock
|
Quill diameter
|
mm (inch)
|
65 (2.6)
|
|
Quill bore taper
|
MT
|
#4
|
|
Quill travel
|
mm (inch)
|
80 (3.1)
|
|
Motors
|
Coolant pump motor power
|
kW (Hp)
|
0.18 {0.4/1.1}* (0.2 {0.5/1.5})
|
|
Power source
|
Electric power supply (rated capacity)
|
kVA
|
14.97
|
|
Machine Dimensions
|
Height
|
mm (inch)
|
1635 (64.4)
|
|
Length
|
mm (inch)
|
1850 (72.8)
|
|
Width
|
mm (inch)
|
1690 (66.5)
|
|
Weight
|
kg (lb)
|
2600 (5731.9)
|
|
Control
|
CNC system
|
-
|
DOOSAN FANUC i
|
